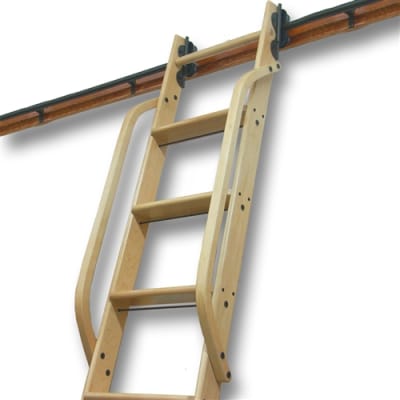

ADD-ON WOODEN HAND RAILS - AVAILABLE UNFINISHED OR CLEAR COAT PRE-FINISHED, IN CHERRY, HICKORY, MAPLE, RED OAK, WALNUT, AND WHITE OAK. HARDWARE FINISHES COME IN SATIN NICKEL, BRUSHED SATIN BRASS, AND BLACK.

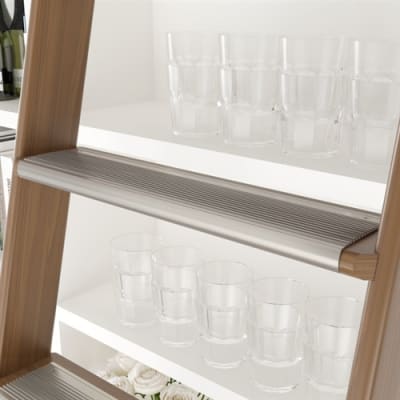

STEP TREAD - RIBBED, ALUMINUM - AVAILABLE IN SATIN NICKEL, HAMMERED ANTIQUE BRASS, BRUSHED SATIN BRASS, OIL RUBBED BRONZE, BLACK, FOR 16 IN. WIDE AND 20 IN. WIDE LADDERS.

OUTSIDE CORNER 90 degree RAILS consist of two parts - the Solid Aluminum Curved Rail and the Double Roller Bracket that attaches to the ladder. Both 16 in wide and 20 in. wide brackets are available in Satin Nickel, Hammered Antique Brass, Oil Rubbed Bronze, and Black. NOTE: Use this product with DOUBLE ROLLER CURVED TOP GUIDES - QG.700, QG.710, QG.720, QG.740, QG.700-20, QG.710-20, QG.720-20, QG.740-20.

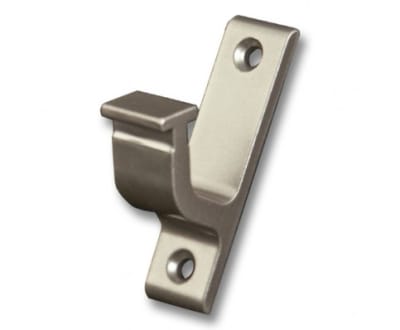

BRACKET FOR ATTACHING RAIL TO WALL FOR SINGLE ROLLER AND HOOK HARDWARE. CHOOSE VERTICAL OR HORIZONTAL, OR MIX AND MATCH. FINISHES INCLUDE SATIN NICKEL (.02, HAMMERED ANTIQUE BRASS (.03), CHROME (.04), BRUSHED SATIN BRASS (.06B), OIL RUBBED BRONZE (.07, OR BLACK (.08). We recommend placing a bracket every 32 in., and near rail splices.

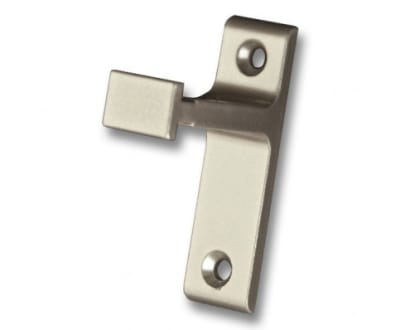

BRACKET FOR ATTACHING RAIL TO WALL FOR DOUBLE ROLLER HARDWARE. CHOOSE VERTICAL OR HORIZONTAL, OR MIX AND MATCH. FINISHED INCLUDE SATIN NICKEL (.02, HAMMERED ANTIQUE BRASS (.03), CHROME (.04), BRUSHED SATIN BRASS (.06B), OIL RUBBED BRONZE (.07, OR BLACK (.08). We recommend placing a bracket every 32 in., and near rail splices.

DOUBLE ROLLER HARDWARE KIT - 20 IN. WIDE LADDER
Includes two Double Roller Top Guides (Double or Double Curved), two Bottom Wheels (Sunburst or Contemporary), and seven Steel Rod Step Supports in Satin Nickel, Chrome, Hammered Antique Brass, Brushed Satin Brass, Oil rubbed Bronze, and Black. (Not all finishes are available for all products.)

SINGLE ROLLER HARDWARE KIT - 16 IN. WIDE LADDER.
Kit includes Two Double Roller Top Guides, Two Bottom Wheels, (Braking or Non-Braking) and 7 Steel Rod Step Supports. Single Roller hardware allows the ladder to roll on the rail and be moved to another location. The Single Roller Hardware Kit comes with either braking (recommended) or non-braking wheels. The sliding mechanism allow the ladder to be stored vertically when not in use. Choose from classic Sunburst or Contemporary Wheel in Satin Nickel (.02), Hammered Antique Brass (.03), Brushed Satin Brass (.06B), Chrome (.04), Oil Rubbed Bronze (.07) or Matte Black (.08) Not all finishes are available on some products.

DOUBLE ROLLER HARDWARE KIT - 16 IN WIDE LADDERS.
Kit includes Two Double Roller Top Guides, Two Bottom Wheels,(Braking or Non-Braking) and 7 Steel Rod Step Supports. Double Roller hardware allows the ladder to stay on the rail and includes either braking or non-braking wheels. The Double Curved Rollers facilitate moving the ladder around curved corner rails. Choose from classic Sunburst or Contemporary Wheel in Satin Nickel (.02), Hammered Antique Brass (.03), Brushed Satin Brass (.06B), Chrome (.04), Oil Rubbed Bronze (.07) or Matte Black (.08) Not all finishes are available on some products.

DOUBLE HOOK HARDWARE KIT WITH NON-SKID FEET - 20 IN WIDE LADDER
Includes Two Double Hook Top Guides, two Non-Skid Feet, and seven Steel Step Supports

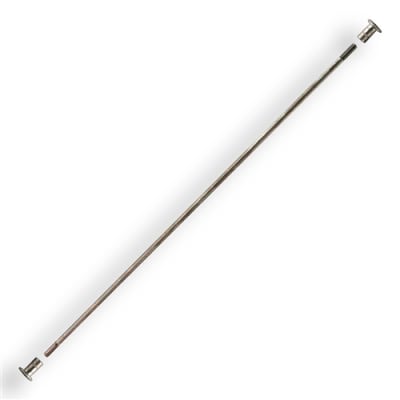

STEEL ROD STEP SUPPORTS ARE INSTALLED UNDER EACH LADDER STEP.
Up to 102 in - 7 Step Supports (included in Hardware Kits)
102 in. up to 112 in. - 8 Step Supports
112 in. up to 126 in. - 9 Step Supports
126 in. up to 138 in. - 10 Step Supports
138 in. up to 150 in. - 11 Step Supports
150 in. up to 162 in. - 12 Step Supports
162 in. up to 168 in. - 13 Step Supports

INSIDE CORNER RAILS ALLOW THE LADDER TO ROLL AROUND 90 DEGREE OR 135 DEGREE CORNERS. NOTE: USE WITH DOUBLE ROLLER CURVED TOP GUIDES - QG. 700, QG.710, QG.720, QG.740, QG.700-20, QG.710-20, QG.720-20, QG.740-20.

NON-SKID CLEAR STEP TREAD, 3" x 13". These are transparent and should be installed after the ladder is finished.

Splice Kit for Joining Two Rails Together
QG.41.00
(Shown inserted in Rail with Bracket - Not Included)
Kit Includes:
1 - Alignment Pin
1 - Alignment Bar, 1/8" x 1/2" x 4"
2 - Set Screw #10-24 x 3/8"
$12.00
